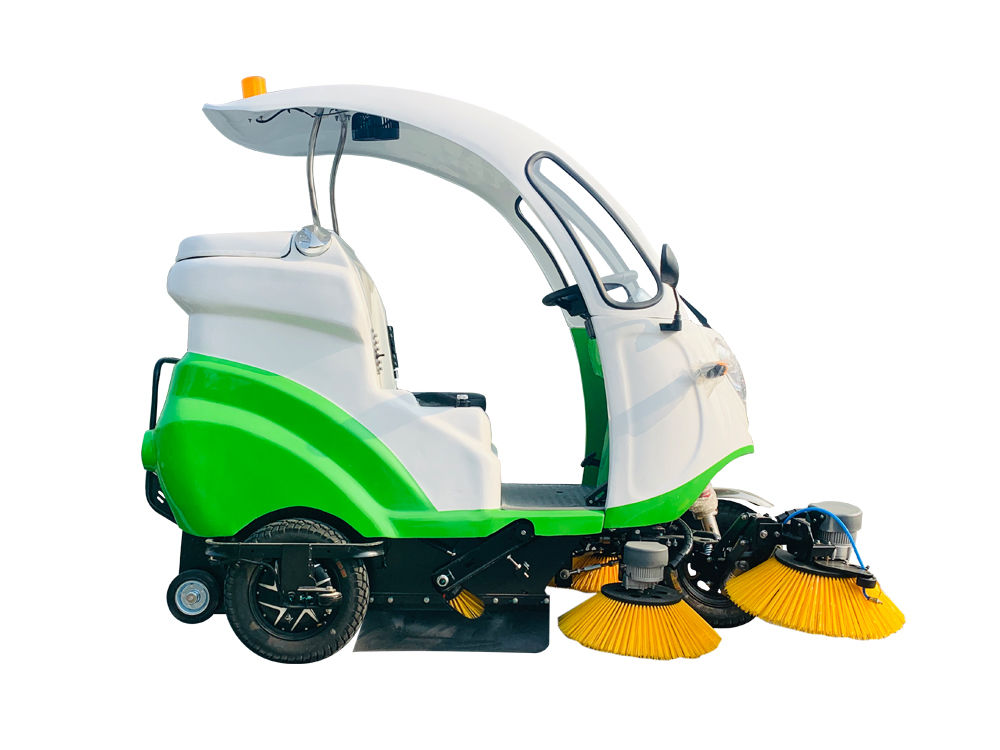

Ruiqing S13 pure electric road sweeper is mainly used for cleaning pavements such as sidewalks, non motorized lanes, back streets, municipal gardens and property communities. It can quickly clean white garbage, fallen leaves, stones, sand, etc., and combine spraying, cleaning and dust collection, with good effect and high efficiency.
◆ Chassis: high strength square steel welding, high quality carbon steel, electrophoresis antirust treatment, corrosion resistance
◆ body: semi enclosed body, polymer fiber shell, anti impact and corrosion resistance
◆ drive: double DC BLDCM drive, high power; dual module control, knob gear, stepless transmission
◆ Main brush cleaning system: the motor drives the main brush directly, without transmission loss, stable performance and longer operation time
◆ Motor: all motors adopt brushless motor with stable performance
◆ seat: the seat has gravity sensing device, which is safe
◆ steering system: steering of automobile steering disc, damping of double front fork
◆ tires: three wheels adopt 3.50-10 motorcycle special vacuum tires, which are wear-resistant and have long service life
| Parameters | Ruiqing S13 |
| work efficiency | ≥14000㎡/h |
| Main brush width | 700mm |
| Brush diameter | 500mm*3 |
| Duration of work | ＞6h |
| Mileage | ≥100km |
| Maximum driving speed | 30 km/h |
| Climbing ability | ≥30% |
| Capacity of dustbin | 120L（Double box inside） |
| Tank capacity | 60L |
| Voltage / rated power | 48V/4kw |
| Turning radius | ≤2000mm |
| Dimensions | 2200*1480*1850mm |
| Net weight of machine | 479kg（Lead acid）、380kg（Lithium battery） |
